5-Pack 12V SPDT 5-Pin Relay with 12AWG Tinned Copper Wires - High Current Automotive Relay for Car Audio, LED Lights & Electrical Circuits

Product Description

Related Video

About this item

• 12 V DC automotive waterproof relays (max 14 V). Note: 12 V and 14 V are coil voltages. they are not the voltage that triggers the switch
• Premium quality: durable relay and harness socket with 5 wires; made from high-grade materials to ensure superior quality and long lifespan
• Pre-wired Harness: Heavy-duty 12/16 AWG wiring harness. Black - 16AWG Pin85. White - 16AWG Pin86. Red - 12AWG Pin30 Yellow - 12AWG Pin87a. and Blue - 12AWG Pin87
• Enhanced Waterproof: The 5-Pin relays are tightly sealed with a strong cap and seal ring. excellent performance of waterproof. dustproof. and moisture-proof. works well in any weather conditions
• The package includes 5-pack Waterproof Relay and Harness. 1x User manual
• Fit type: Universal Fit

Waterproof relay and harness

The automotive relay is the ideal electrical relay to be used on off-road vehicles. boats. and dirt track cars that are often exposed to wet or muddy conditions.

12AWG Tinned Copper Wire: Pin 87a Yellow

12AWG Tinned Copper Wire: Pin 87 Blue

12AWG Tinned Copper Wire: Pin 30 Red

16AWG Tinned Copper Wire: Pin 85 Black

16AWG Tinned Copper Wire: Pin 86 White

• Switching Voltage: 14V DC Max
• Initial contact resistance (at 6VDC 1A): 50m¸ Max.
• Coil Voltage: 12V DC/Maximum Applied Voltage: 15.6 V DC
• Max Switching Current: 40A/Max Switching Power: 560 W
• Contact Ratings: NO 40A 14V DC/Contact Resistance: 100mMAX (at 6VDC 1A)
• The package includes: A user manual. 5 x 5-PIN SPDT Waterproof Relay and harness

Specifications

Safe Connection

Unique interlocking design provides simple and easy installation. The relay sockets come with color-labeled wires for accessories wiring. safe and convenient.

Premium Wire

The wire of this harness is of high quality. Good electrical conductivity. high temperature. and melting resistance. and outstanding bending performance.

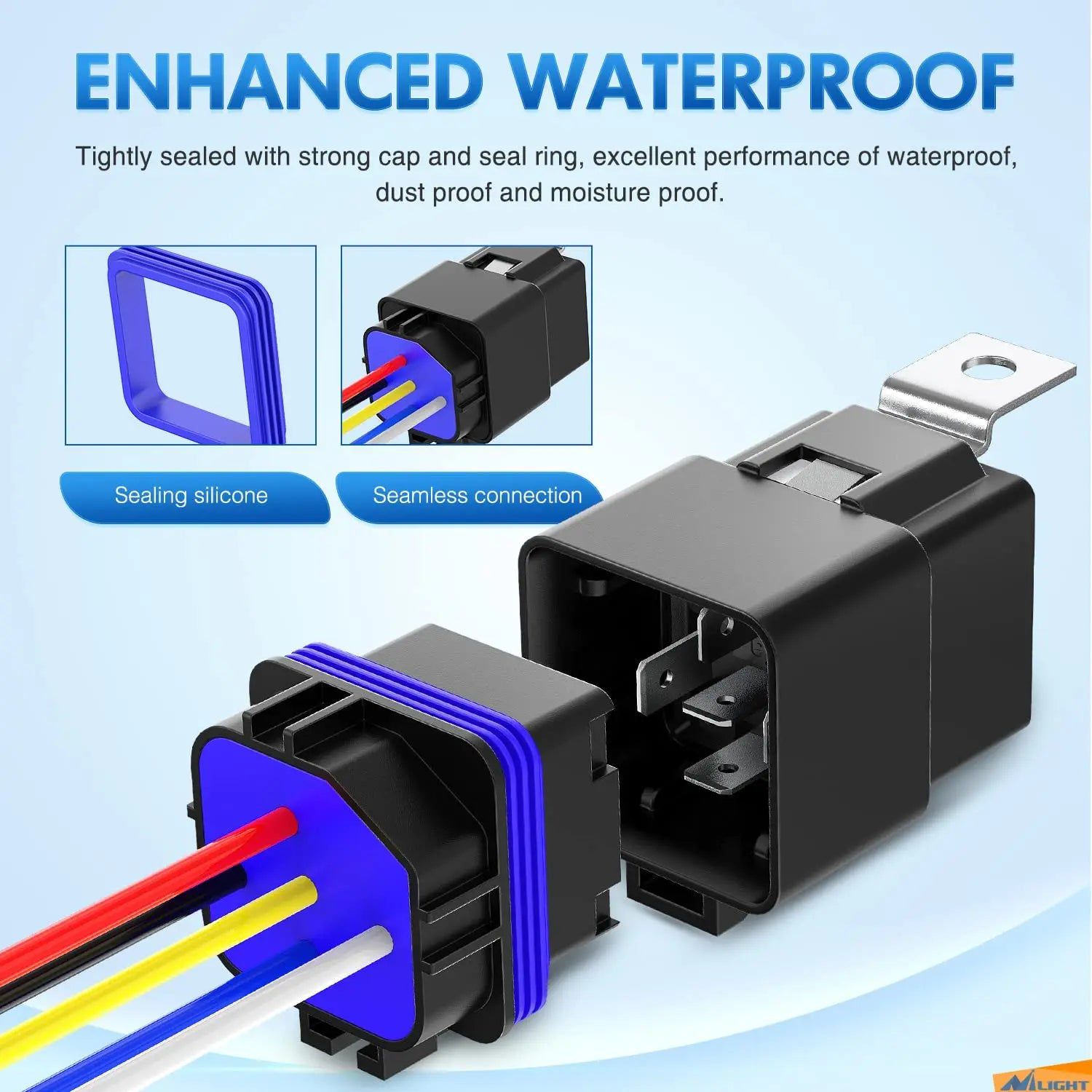

Waterproof Seal Ring

The relays are tightly sealed with a strong cap and seal ring. excellent performance of waterproof. dustproof. and moisture-proof. and work well in any weather conditions.
