16AWG Wire Harness Kit with 12V 5-Pin Light Bar Switch, 3 Fuses & 4 Spade Connectors - Perfect for Off-Road LED Light Bars, Truck Accessories & Automotive Wiring Projects

Product Description

About this item

• Two Available leads: 12 feet extendable wiring harness. two Sets of light output connectors for dual light fixtures less than 180W
• Efficient protection: power relay and inline blade fuse ACT as the First Line of defense against overcurrent and short circuit
• Shining in the dark: built-in two premium LEDs emit the soft light to illuminate the patterns. easy for you to find the switch in the dark
• Wide application: suitable for almost all 12V battery vehicles. such as jeeps. ATVs. UTVs. cars. motorcycles. ships. yachts. and trailers
• Package includes: 1 x wiring harness kit. 1 x 5 pin LED rocker switch. 1 x instructions

Specification

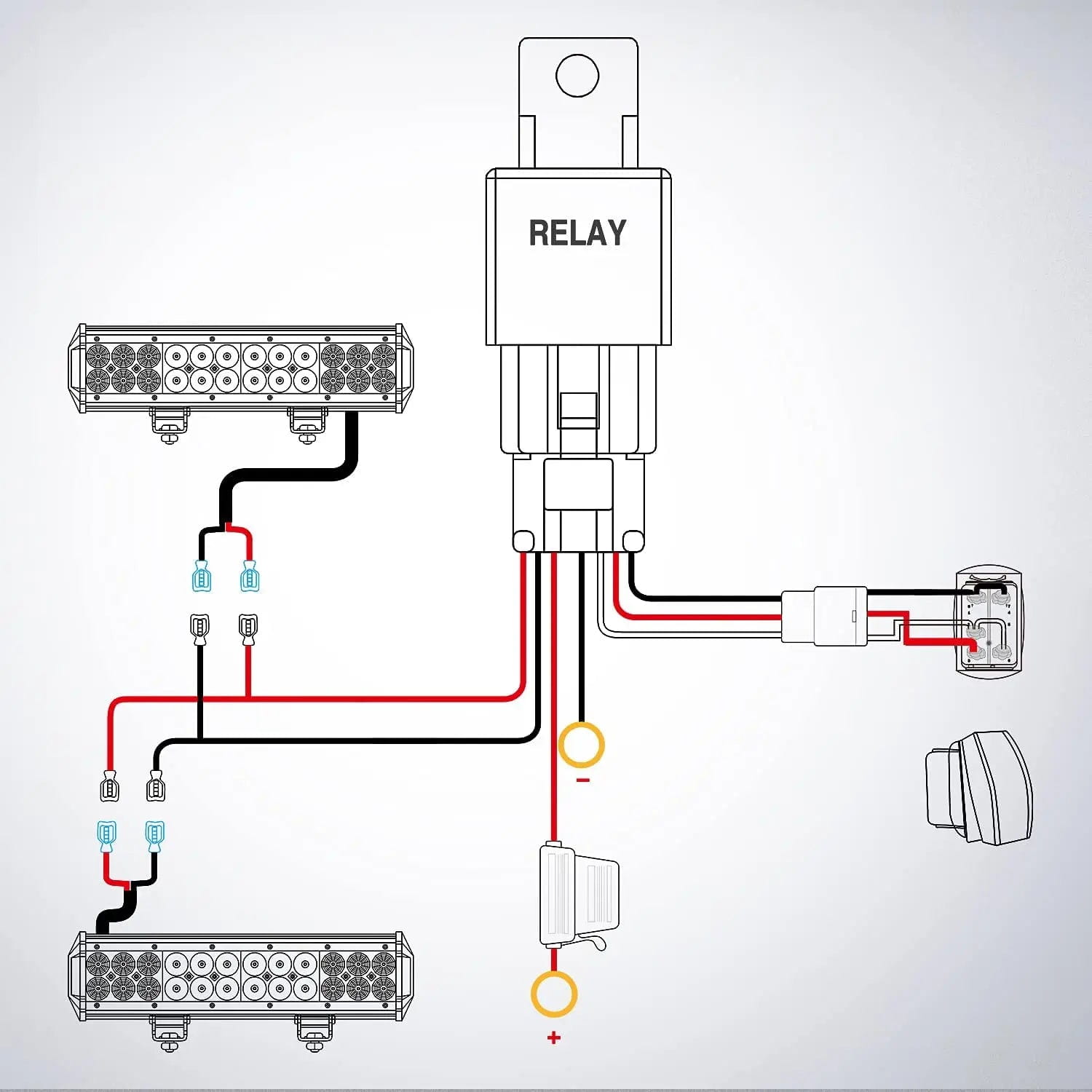

Wiring Harness

12ft Universal Wiring Harness Kit - Two Leads.

2 sets of light connectors to light fixtures; Operating Voltage: 12V DC.

Wire Gauge: 16 AWG; Max Wattage: 180W; Max Ampere: 15A.

5-pin on-off rocker switch; DC 12V automotive relay. inline blade fuse with three extra fuses.

Note: Please finish the installation by professionals or install the wiring harness under the guidance of professionals.

Switch

5-pin on-off rocker switch rated at 12V 20A and 24V 10A DC.

Material: ABS+PC; Built-in 2 LEDs. laser-etched pattern.

Product Size: 1.9in(48.3mm) x 1.04in(26.3mm).

Mounting Hole Size: 1.43in(37mm) x 0.84in(21.3mm).

Features

5-pin Switch

The switch is very flexible for turning on or off. It can stand up to 10.000 times pressing under normal use.

Two Leads

With two sets of light output connectors. the wiring harness can hook up two LED lights within 180W at the same time.

Water-resistant Lid

Specially designed cap for tight sealing. efficiently prevent water and dust from entering. upgrading waterproof performance.
