Waterproof Low Profile Rectangular LED Trailer Lights Kit - Submersible LED Tail Lights for Boat Trailers, Utility Trailers & Dump Trailers - Durable & Bright for Safe Night Towing

Product Description

Related Video

About this item

• Multi-functions: Combined functions of the tail. brake/turn signals. side marker. and license plate light. Perfect for 12V DC vehicles with a maximum width of 80 inches. Such as most trailers. boats. trucks. RVs. Marine. Pickups. campers. tractors. etc
• Excellent Brightness: Left lamp has 27 diodes including 9 diodes for license plate light. and the right lamp has 12 diodes. Quality LEDs draw less amperage but output optimal brightness. improving great visibility and extending a longer lifetime than the incandescent lamp. DOT Compliance to ensure your 100% safety
• Entirely Submersible: The inside LEDs and the circuit board are fully waterproof and sealed to work underwater perfectly without electric short risk. The light housing also features water drainage for added protection

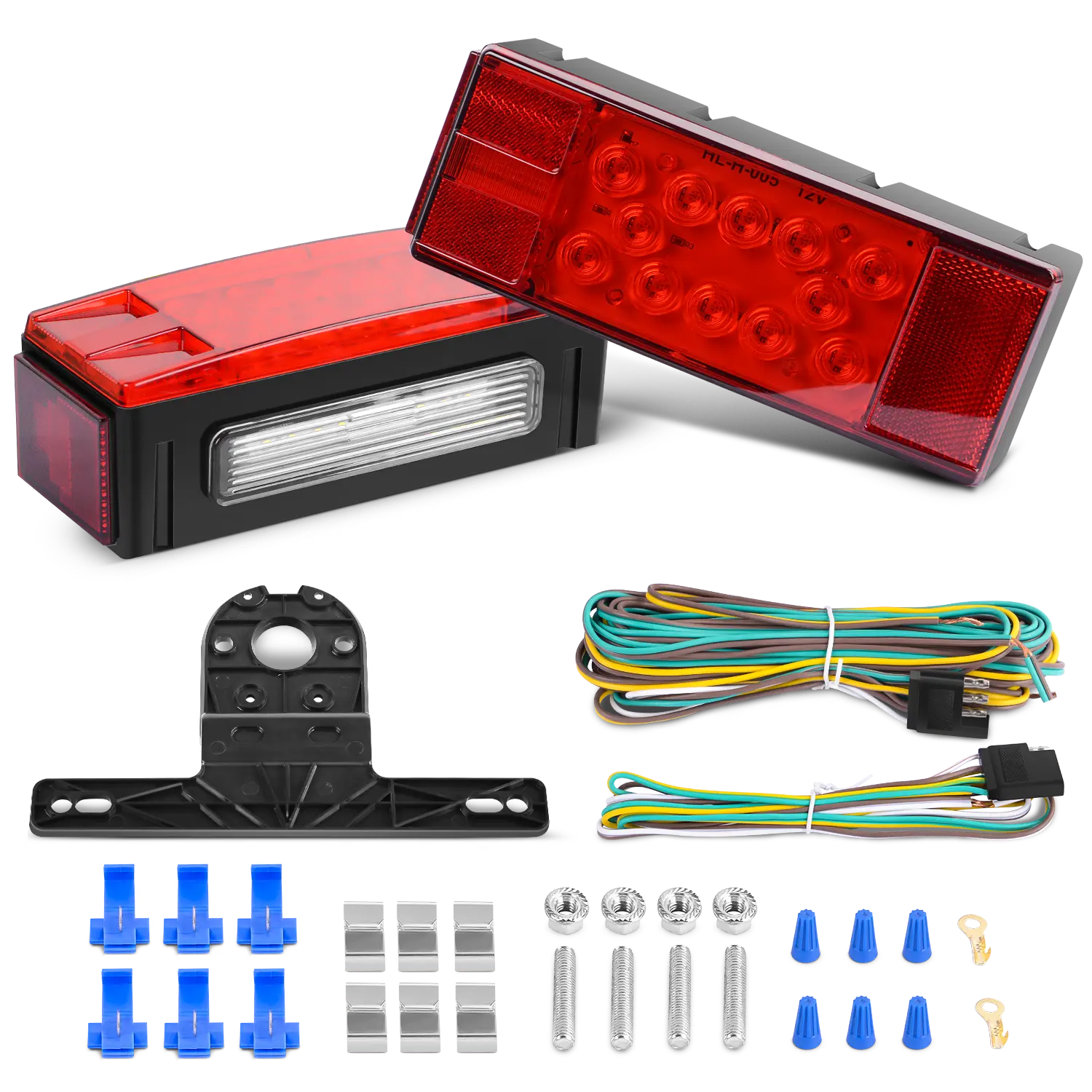

• All-in-one kit: Comes with everything for your straightforward installation of the light. including lights. license plate bracket. 25ft length trailer wiring harness. and the different types of stainless steel mounting hardware
• Easy Installation: For light mounting: Lamp with license plate light on the left side. the other on the right side. For wiring routing: Please see Picture 5 for instructions. For wiring connection: Just color to color. white to the ground (vehicle frame). For hardware. you might need to use. please see Pic 8 for instruction
• Fit Type: Universal

Specifications:

Light dimension: 8.3 x 3.0 x 3.0

Mounting distance: 2

Mounting stud diameter/ light mounting hole size: 0.23 Left Lamp: 27 LED diodes. Right Lamp: 12 LED diodes

Working Voltage: 12V DC

Key Features

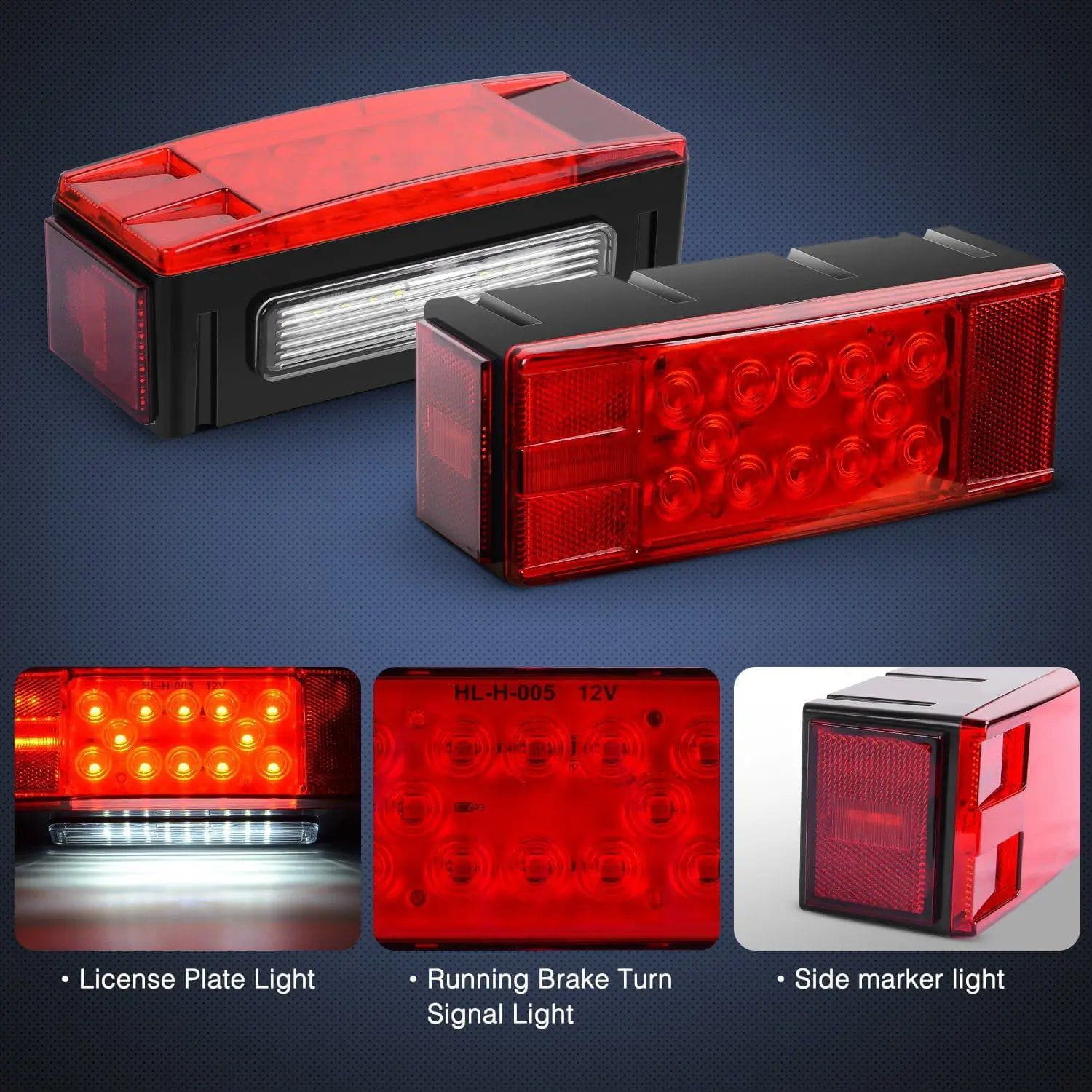

Left Light

Functions tail light. side marker light. stop/left turn signals light. license plate light.

Right Light

Functions tail light. side marker light. stop /right turn signals light.

Stop & Turn Light

High brightness red Light

Running Light

Low brightness red tail light. red side marker light. white license plate light

Accessories

License plate Bracket

Install the license plate at the left lamp that has a license plate light at the bottom.

Trailer Wiring Harness

Comes with 2 sets of 4-pin trailer wiring harnesses. 21.65 feet plus 3.93 feet.

Handy Hardware Pack

Comes with a wire nut. wire clip. mounting stud and nuts. ring connectors. and splice connectors for your use. Find usage instructions from Pic 7 of the product.

Application

Entirely Submersible

Fully waterproof sealed for the inside LEDs and circuit board. Work underwater perfectly without electric short risk. The light housing also features water drainage for added protection.

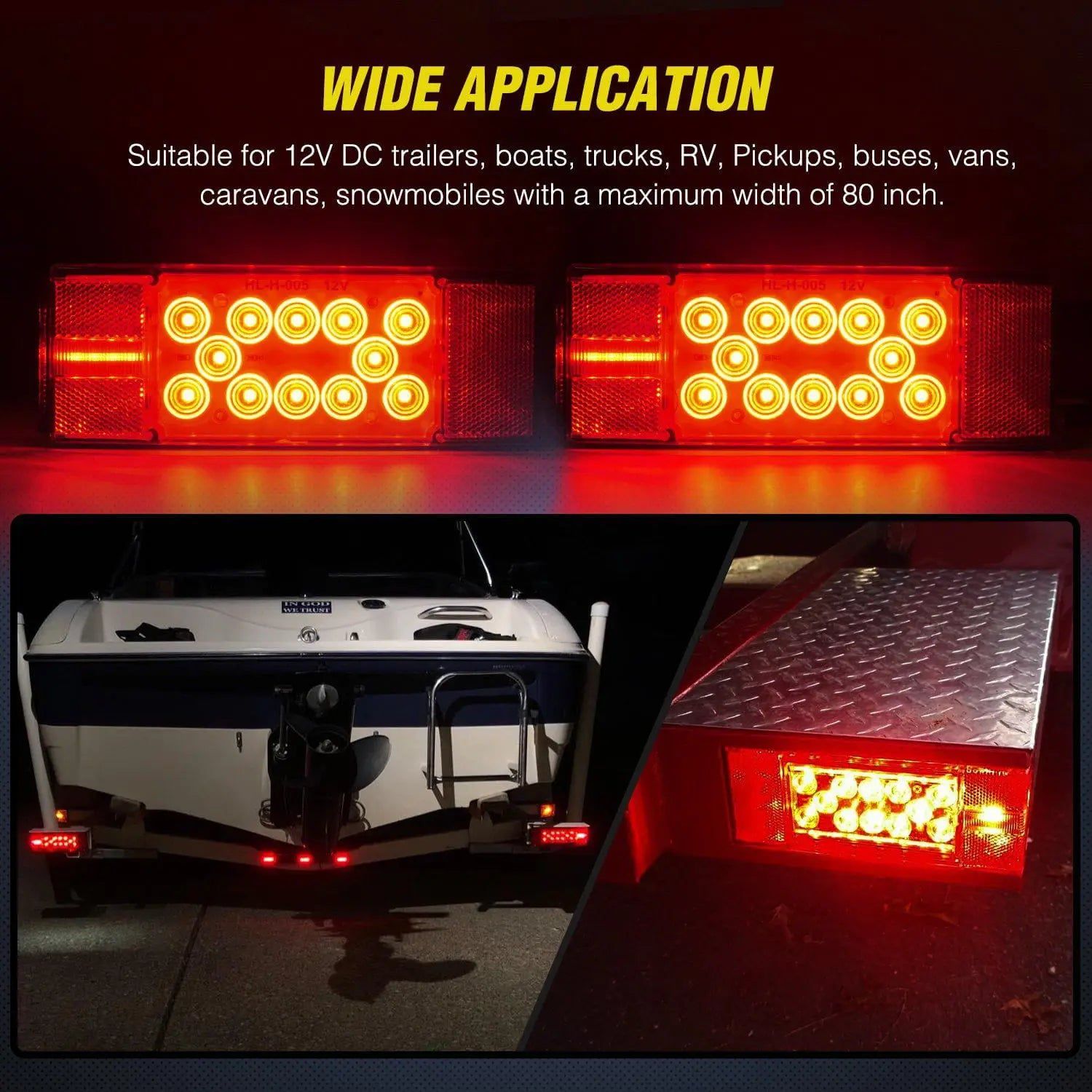

Wide Application

Fit for 12V DC vehicles with a maximum width of 80 inches. Such as most trailers. boats. trucks. RVs. Marine. Pickups. campers. tractors. etc

Wire Connection

Brown wire of light to vehicle's running lights wire; Yellow wire of the left lamp to vehicle's left stop & turn light wire; Green wire of the right lamp to vehicle's right stop & turn light wire; White ground wire of both lights to the vehicle's frame
