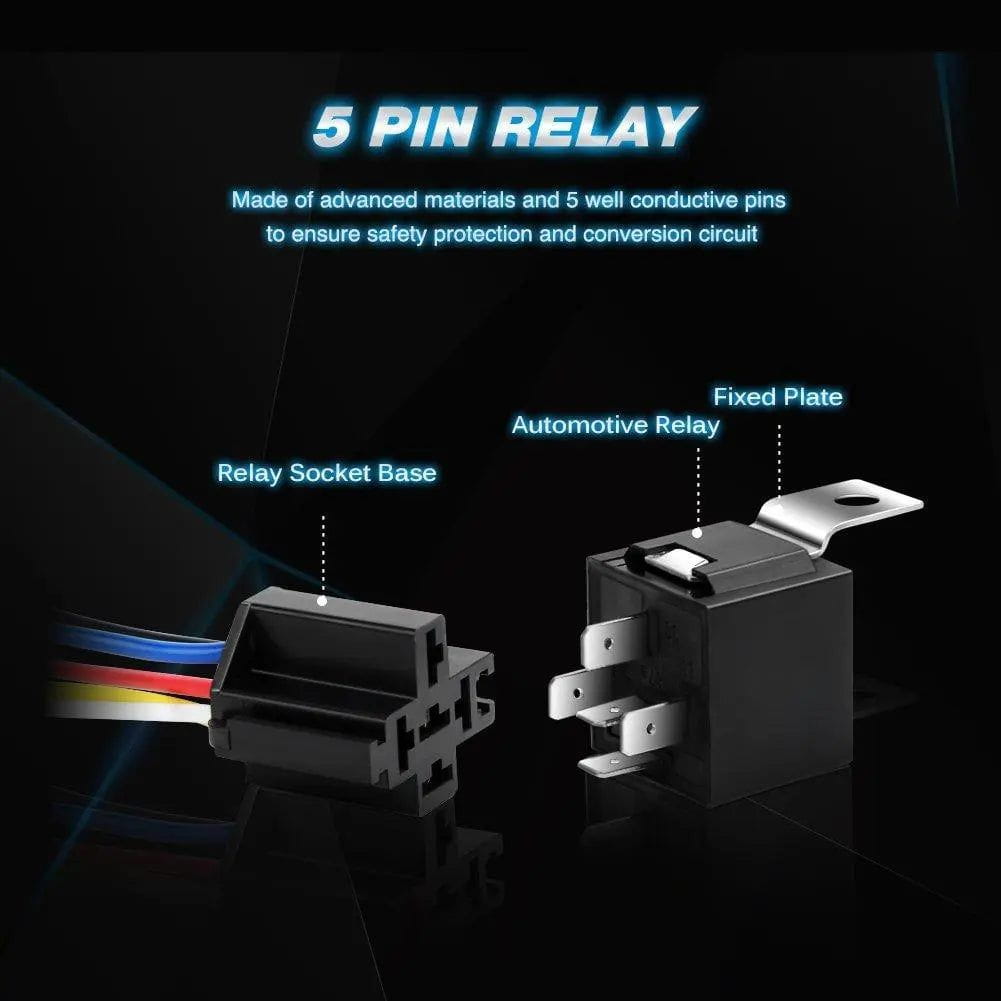

5-Pin Automotive Relay Kit with 5-Pin Harness Sockets - 5 Pack - Perfect for Car, Truck & Motorcycle Electrical Systems

Product Description

About this item

• High switching capability: Normally open 40A/14V DC and normally close 30A/14V DC. Suitable for Nilight LED light bar wiring harness kit
• Premium quality: Durable relay and harness socket with 5 wires; Made with high-grade materials to ensure superior quality and long lifespan
• Male-female slot design: Unique male-female slot design. easy to connect the relay with harness socket. clean and neat after installation
• Easy wiring: The relay sockets come in different colors for loads/accessories. simple and convenient wiring
• The package includes 5 x relay and 5 x relay sockets with wires. Fit type: Universal fit

Specification

Contact Capacity:
Normal Switching Capacity:
-NO 40A 14VDC.
-NC 30A 14VDC.
Max. Switching Current: 40A.
Max. Switching Voltage: 30V DC.
Max. Switching Power: 560W.
Wiring: PIN87 Yellow (To Light/Accessory). PIN 87a Red.
PIN86 White (To Switch). PIN30 Blue (Positive). PIN85 Black (Ground).

Features

Circuit Protector

Premium contactor with Normally Open@40A/14V DC and Normally Close@30A/14V DC. Max. 40A contact switching capability of the copper coil.

Premium Wire

The wire of this harness is of high quality. Good electrical conductivity. high temperature. melting resistance. and outstanding bending performance.

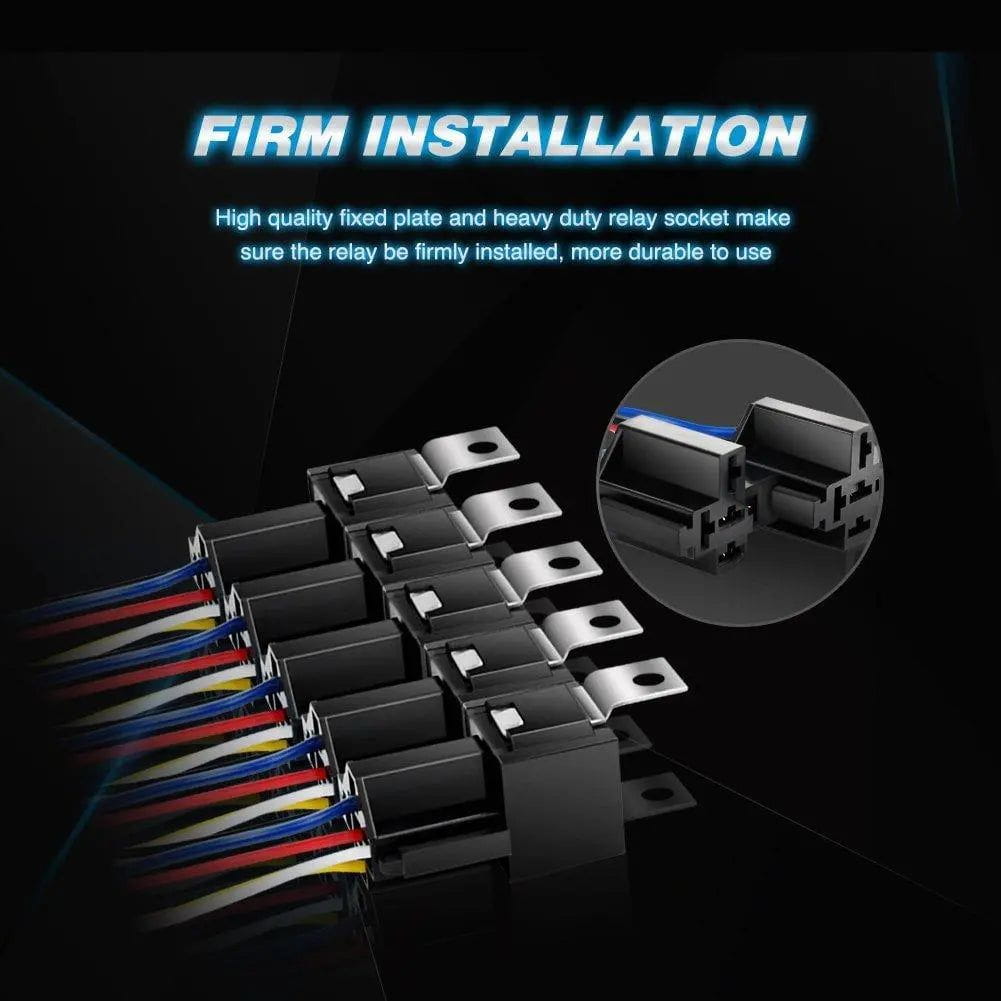

Safe Connection

Unique interlocking design provides simple and easy installation. The relay sockets come with color-labeled wires for accessories wiring. safe and convenient.
