16AWG 12V Heavy Duty 5-Pin Rocker Switch Relay Kit with Blade Fuse & Socket Connector - Compatible with 9005 9006 9140 9145 HB3 H10 Fog Light Bulbs - Perfect for Off-Road Vehicles, Marine & Automotive Lighting Upgrades

Product Description

About this item

• Application: This Wiring harness is designed for fog lights. The socket connector is compatible with 9005 9006 9012 9140 9145 9150 9155 HB3 H10 Fog light bulbs. The wiring harness kit can be connected to the light source within 180W. If your power supply is 24V. please replace the original 12 V relay with a 24V relay.
• 5 Pin Rocker Switch: Nilight 5 pin on-off rocker switch with SPST design (single pole single Throw). simple installation. freely turn on or off the light. Built-in two premium LEDs Emits soft light to illuminate the patterns. easy for you to find the switch in the dark.
• Two Leads Available: 7.2 feet extendable wiring harness. two sets of light output connectors for dual light fixtures less than 180W.
• Circuit protection: Power relay for safety protection and conversion circuit. Blade fuse protects the circuit when over-current or short circuit occurs. Its load capacity is up to 180W and comes with two extra fuses.
• Package includes: 1 x fog light wiring harness kit and extra blade fuses. A wiring diagram. 2 Year Warranty by Nilight.

Specification

Working Voltage: 12V DC; Max Working Current: 15A; Max Wattage: 180W; Wire Gauge: 16 AWG;

Automotive relay. inline blade fuse with three extra fuses;

Switch: 5 Pin Rocker Switch;

Note: Please finish the installation by professionals or install the wiring harness under the guidance of professionals.

Product Features

Durable In Use

The switch is very flexible for turning on or off. It can stand up to 10.000 times pressing under normal use.

Automotive Relay

The relay is high quality made with well conductive pins. It effectively protects the circuit and the lighting system.

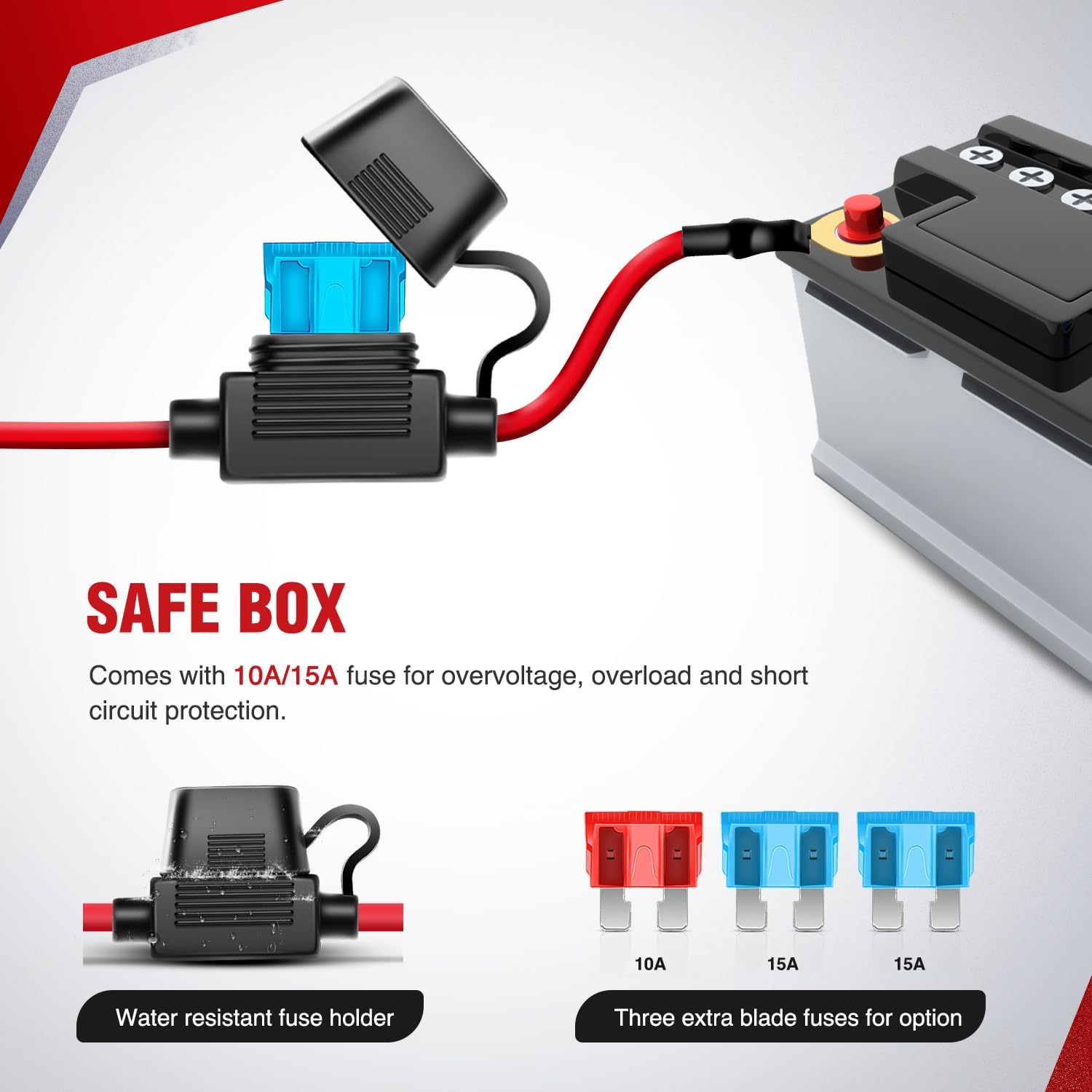

Inline Fuse with Fuse Holder

Inline Fuse against over-current and short circuit. Specially designed cap. efficiently prevent water and dust from entering.

Plug and Play

9005 9006 9012 9140 9145 9150 9155 HB3 H10 Connector.Plug and play. easy to connect.

LED Lighting Effect

Backup Lights

The lower LED illuminates constantly even when the switch is OFF. easy to find in the dark.

No Backup Lights

The lower LED will illuminate only when the switch is turned to ON position.
