6 Inch Oval Red LED Trailer Tail Lights & 2 Inch Round Amber Side Marker Lights Kit - Waterproof, DOT Approved for Trucks, Trailers, RVs - Perfect for Night Driving & Road Safety

Product Description

Related Video

About this item

• Main Purpose: Works as a complete trailer tail light guard box set for your new or existing trailer. has stop turn tail lighting modes. Can be directly welded on or bolted on to the rear. side. bottom or top frame of your trailer.
• Excellent Brightness: Use high-quality SMD LED. lights output excellent high brightness red light for stop turn light. low brightness for tail side marker light. With a newly designed 3LED license plate light. provide maximum visibility and security. reducing the occurrence of the traffic accident.
• Solid Built : Made of heavy duty steel. painted with quality black powder-coated finish. and pre-cut holes for 6 oval light. 2 round side light & license plate mounting. Work perfectly in all kinds of bad weather.
• Wiring Guidance: White wire with O ring terminal for ground. black wire for tail side marker light and license plate light. red wire for red stop turn light.

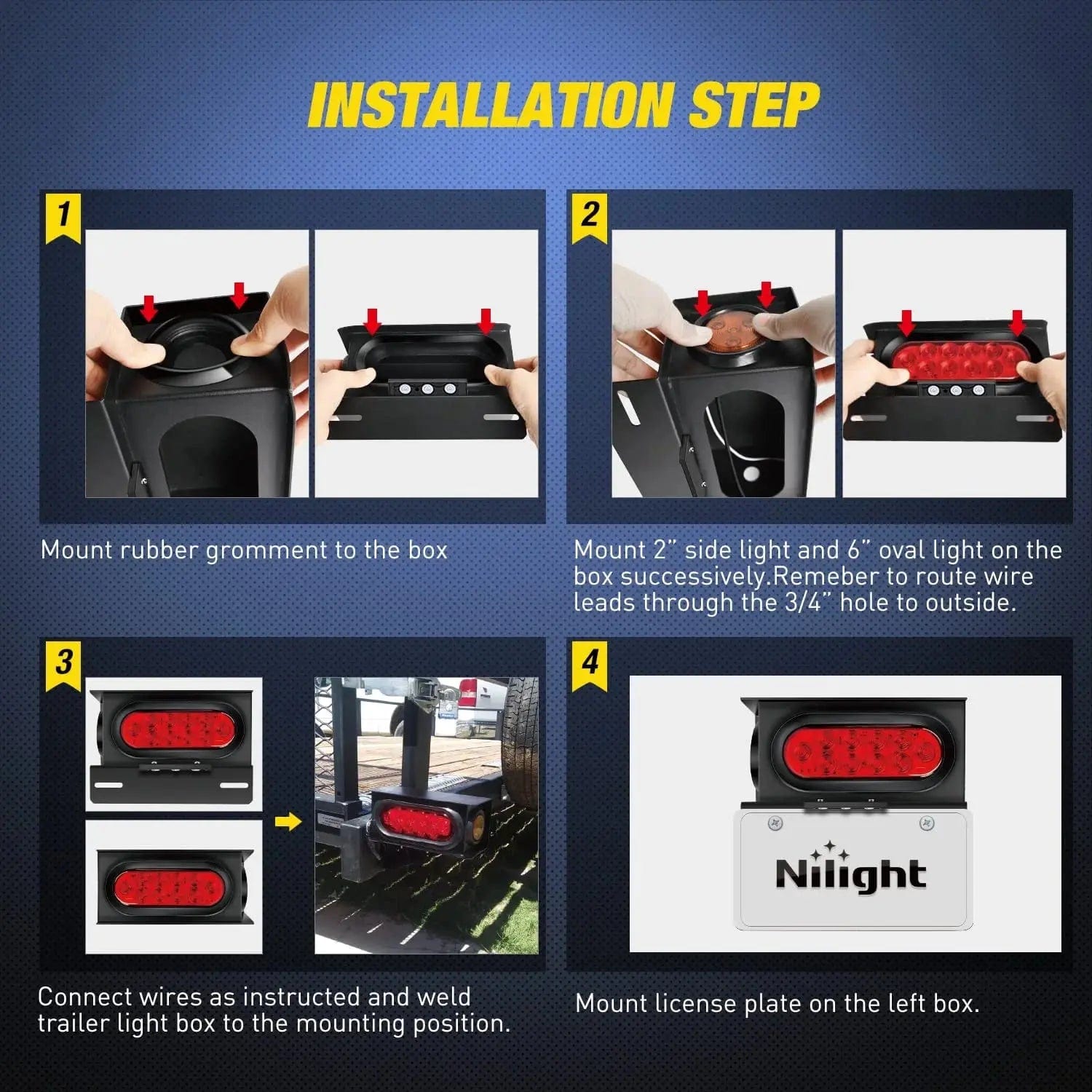

• Simple Installation: All in a set and lights are mounted on the box. Just hardwire each pigtail wire to the corresponding wire on trailer. And then weld on or bolt on the light box to the trailer frame.
• Removal Tips: Press down on the oval light with both hands and the light will fall off; Taking out the oval light and the silicone; Reaching into the oval hole with hand and push the round light out from the inside. and then taking out the silicone.

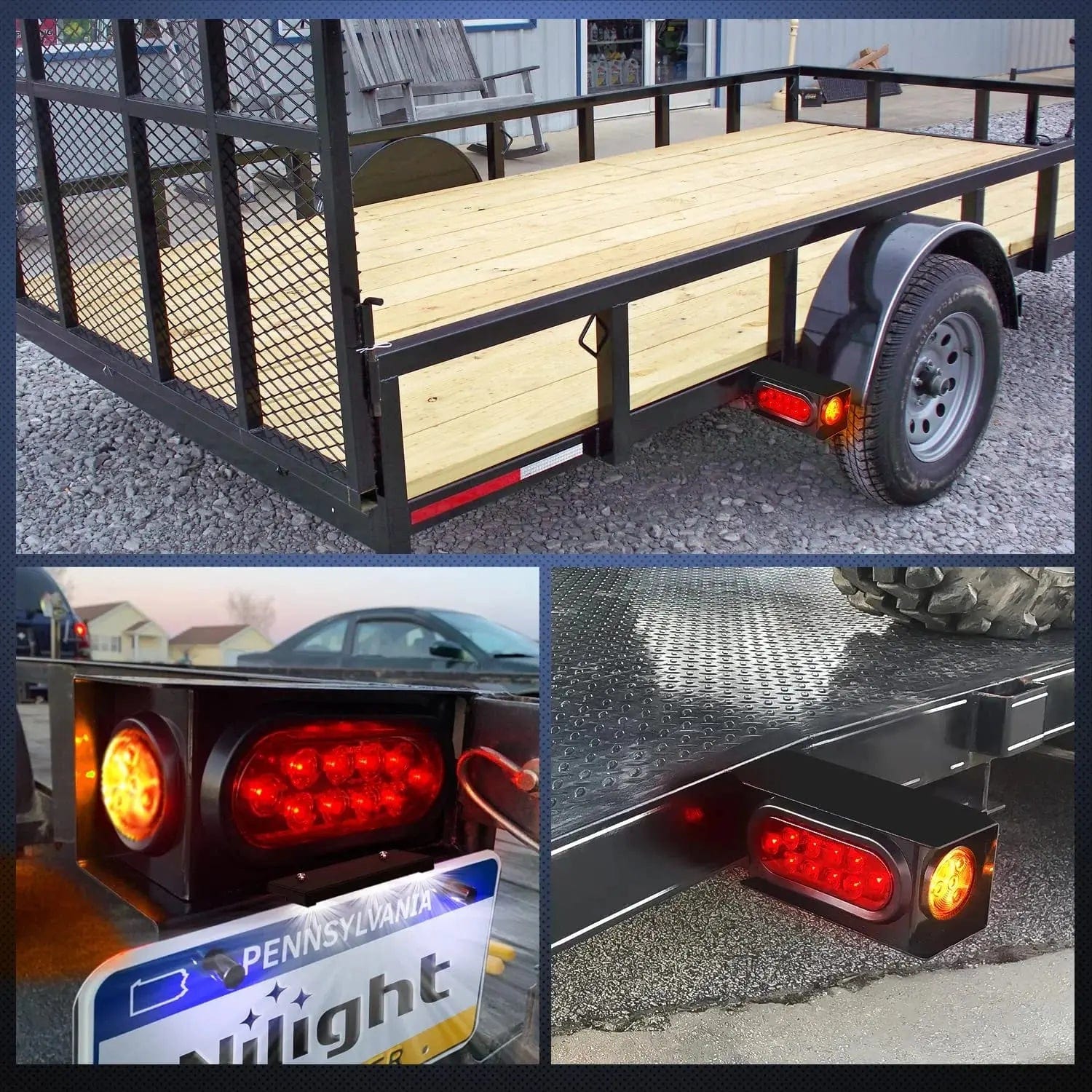

Complete trailer tail light guard box set designed for direct weld on or bolt on your new or existing trailer. work perfectly as stop turn tail light. license plate light and side marker light.

• Working Voltage: 12V DC
• LED Color: Red. Amber and White.
• LED Quantity: 10PCS in each oval light. 4PCS in each round light and 3PCS in license plate light.

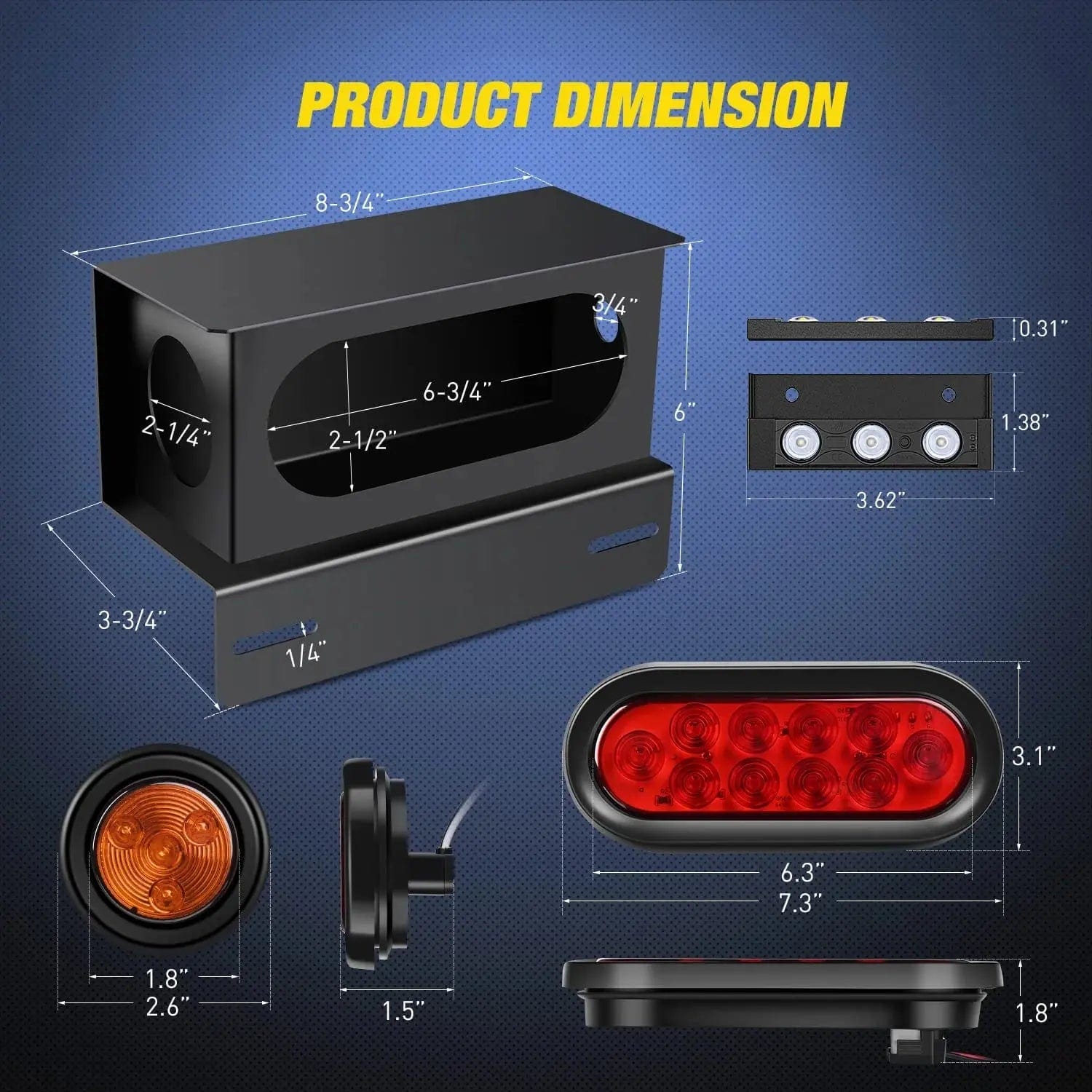

• Trailer light box size: Driver side: 8-3/4 x 6 x 3-3/4; passenger side: 8-3/4 X 4 X 3-3/4.
• Oval light size with grommet: Round light size with grommet: 2.6 x 1.5; License plate mounting hole size: 1/4 in height.

Key Features

All in A Set

Comes with 6 inches of oval light and 2-inch round light mounted on a solid guard box in a set. Driver side with license plate mounting hole.

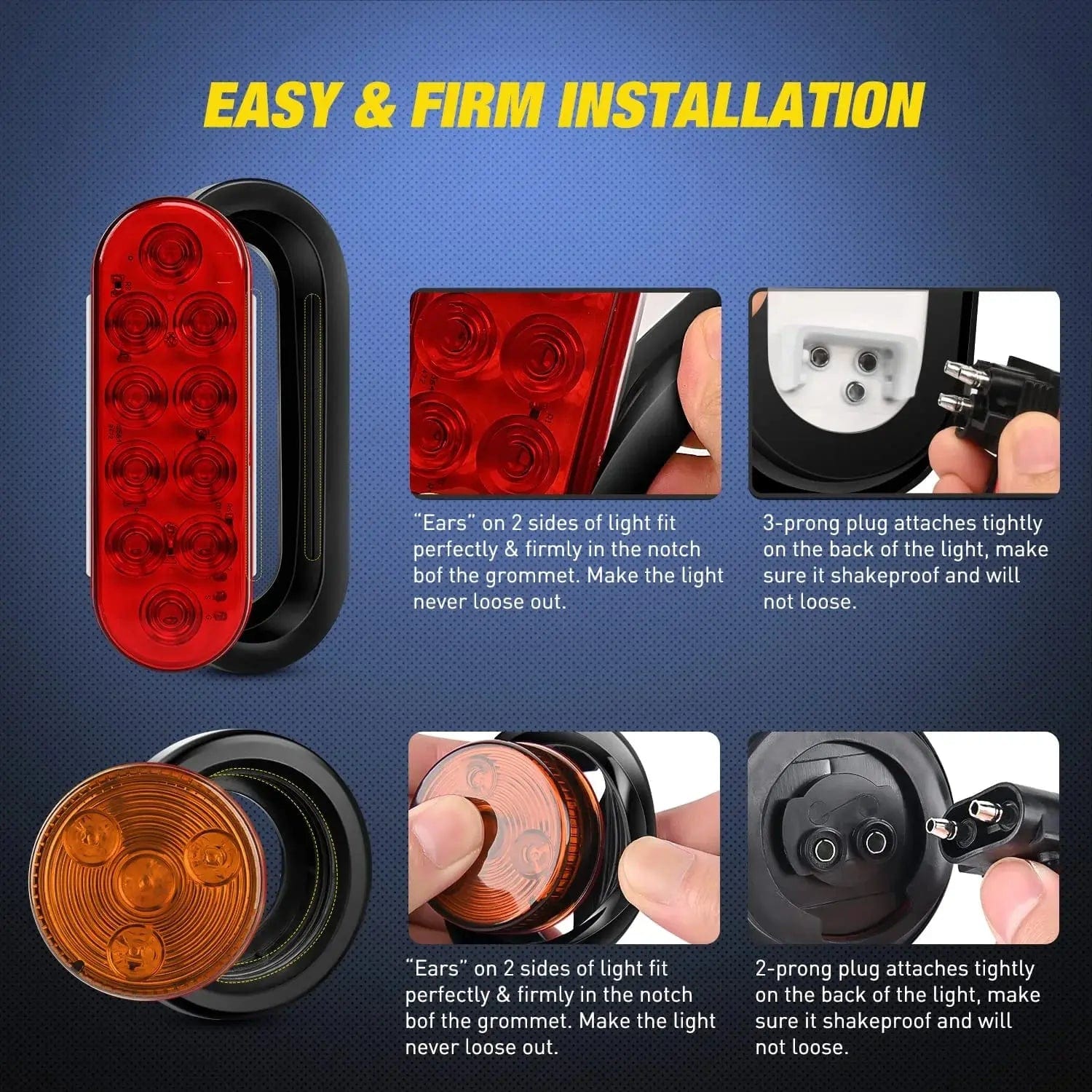

Firm Installation

Special designed. lights can be inserted firmly into the grommet. the grommet seat is firm to the box. and plugs are attached tightly to the light. No worries of light loose or wire loose.

Stop Turn Tail Side Marker Light

Work as stop turn tail side marker light. High brightness for stop turn light.

IP67 Waterproof

The oval light is upgraded in IP67 waterproof. Completely sonically sealed.

Applications

Direct weld on or bolt on the frame of trucks. trailers. tractors. semi-trailers. horse trailers. travel trailers. dump trucks. special vehicles. etc.
